Hot Selling Analog Camera A3 HD Dome CCTV Camera CCTV Camera 750TVL manufacturer from China Shenzhen JieShiAn Electronic Technology Co., Ltd

Product Detail

Means of Transport: Ocean,Land,Air

Packing: 1 unit/set

Production Capacity: 1000

Delivery Date: 7-15 working days

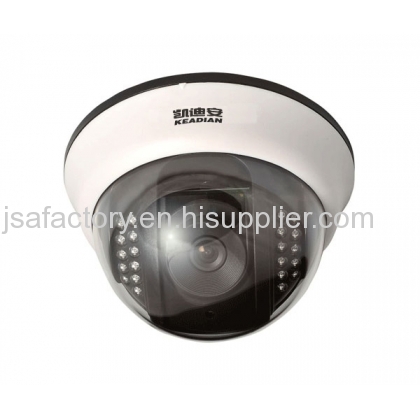

Hot Selling Analog Camera A3 HD Dome CCTV Camera CCTV Camera 750TVL

Products Features:

Support functional of color to black, monitoring day and night;
Designed by ABS materials, with attractive appearance;
22 pcs ¢5 IR led lights, strong brightness, long service life; 10-20 meters infrared distance can be optional;
Adopting PC1089 project and CMOS chip combination, highimageresolution, imaging clarity, the highest level can reach theresolution 800TV Lines.

Technical Specifications

Order Series	KDA-A3P700
Camera Parameters
Sensor	High Performance Video Chip
Effective Pixel	PAL: 976(H)×582(V) NTSC: 974(H)×494(V)
Resolution	Color: 600TVL;Black 800TVL
Min-illumination	0.01 Lux(F1.2)
Standard	PAL/ NTSC
Lens	3.6MM, 6MM ( Optional )
S/N Ratio	≥48dB
Electronic Shutter	Auto exposure,1/60(1/50) 1/2000/ Second
Gamma Correction	0.45
White Balance	Auto
BLC	Auto
IR Irradiation Distance	High intensity infrared system,10-20meters optional;
Others
Power supply	DC 12V
Working Temperature	-10℃65℃
Working Humidity	Below 85%RH
Power Consumption	<5W
Optional Accessories	Power Supply: DC 12V/2A
