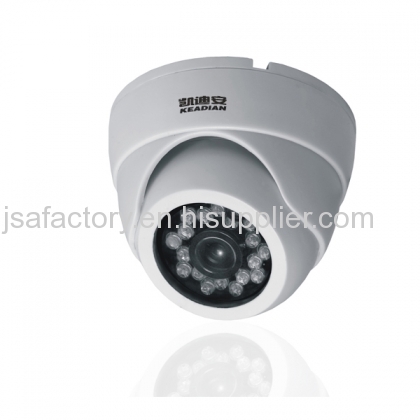

Hot Selling Analog Camera A1 Sony Effio-E 700TVLines IR HD Dome CCTV Camera manufacturer from China Shenzhen JieShiAn Electronic Technology Co., Ltd

Product Detail

Means of Transport: Ocean,Land,Air

Packing: 1 unit/set

Production Capacity: 1000

Delivery Date: 7-15 working days

A2 Analog Camera 800TVLines HD Dome CCTV Camera

Products Features:

Support functional of color to black, monitoring day and night;
Designed by ABS materials, with attractive appearance;
24 pcs ¢5 IR led lights, strong brightness, long service life; 10-20 meters infrared distance can be optional;
Adopting the latest SONYthird high performance Effio series,highimage resolution, imaging clarity, the highest level can reachtheresolution 700 TV Lines.

Technical Specifications

Order Series	KDA-IRA1SEF700
Camera Parameters
Sensor	1/3 SONY Exview Had II CCD
Effective Pixel	PAL:1020(H)×596(V) NTSC:1020(H)×494(V)
Resolution	Color:700TVL;Black:750TVL
Min-illumination	0.1 Lux[Color] / 0.08 Lux[Black & White]
Standard	PAL/ NTSC
Lens	3.6MM, 6MM(optional)
S/N Ratio	55dB
Electronic Shutter	Auto exposure,1/60(1/50) 1/10K/ Second
Gamma Correction	0.45
White Balance	ATW/PUSH/USER1/USER2/ANTI CR/Manu/PUSH LOCK
BLC	Auto/ Manual
WDR	75dB
Day & Night	Black & White / Color or Auto color to black optional
IR Irradiation Distance	High intensity infrared system,10-20meters optional;
Others
Products Appearance	Black & White optional
Power supply	DC 12V
Working Temperature	-10℃65℃
Working Humidity	Below 85%RH
Power Consumption	<5W
Optional Accessories	Power Supply: DC 12V/2A
