A8 960P IR HD Dome Camera 10-20meters 1.3Megapixel HD Network Camera manufacturer from China Shenzhen JieShiAn Electronic Technology Co., Ltd

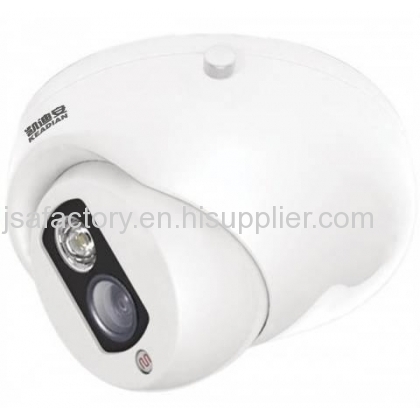

A8 960P IR HD Dome Camera 10-20meters 1.3Megapixel HD Network Camera

Price:	74.0~80.0 USD
Payment Terms:	T/T,L/C,D/A,D/P
Special Groups:	Dome Camera (14)
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: 1 unit/set

Production Capacity: 1000

Delivery Date: 7-15 working days

A8 10-20meters IR Dome Camera 720P 1 Megapixel HD Network Camera

Products Features:

Support DDNS, LAN, WAN access

Support HD resolution1280*960, 1280*720;

Image can be delay less than 200 millisecond(LAN);

Video code rate 1Mpbs-4Mpbs, it can adjust continuously;

Support snapshot, video, 3G network connecting( optional);

Voice intercom:two-way voice intercom, one-way voice broadcast;

Support video, alarm, voice data, built-in WEB Server, IE access;

Support dual-stream, network transmission and local storage are completely independent;

Adopting H.264 video compression technology, high compression ratio, and handle flexibly;

Optional support for wireless WLAN(802.11g), support WEB search, support WEP/WPA/WPA2 encryption;

Support SD card local storage,Mobile phone remote control(optional), support OSD, date and time can be setup;

Support completely transparent RS485 interface, RS485 support one-way network transparent channel connection,

the clients can control series interface devices by the transparent channel of network camera;

Support PPP0E, DHCP, TCP/IP, HTTP, UDP, RTP/RTCP, RTSP, UPNP, SMTP, FTP, SIP, DDNS, DNS, 0NVIF protocols;

Support 1 channel video signal, real-time 25f/s independent compression, variable bit-rate and variable frame rate settings,

when set the video image quality, can also limit compression stream of the video image simultaneously.

Technical Specifications

Order Series	KDA-A8IP130
Camera Parameters
Sensor	1/2.8 CMOS
Effective Pixels	1.3 Megapixel /960P
Min-illumination	0.3 Lux[Color] / 0.1 Lux[Black & White]
Format	PAL/ NTSC
Lens	4MM, 6MM(optional)
S/N Ratio	55dB
Electronic Shutter	Auto exposure, 1/501/10K /Second
Gamma Correction	0.45
White Balance	ATW/PUSH/USER1/USER2/ANTI CR/Manu/PUSH LOCK
BLC	Auto/manual
Day& Night	Back & White/Color or automatic color turn black (optional)
IR Irradiation Distance	Lattice IR light device,10-20meters
Compression Standard
Main Processor	TI368/HI3518
Video Compression Standard	H.264/MJPEG
Compression Output Bit-Rate	32K4Mbps/1M20Mbps
Audio Compression Standard	G.711
Audio Output Bit Rate	64Kbps
Max-frame Rate	PAL: 25 f/s, NTSC:30 f/s
Function Parameters
Moblie phone Monitoring	Support Windows Mobile, Symbian, iPhone platfrom smart phone monitoring
Network Protocol	PPPoE, DHCP, TCP/IP, HTTP, UDP, RTP/RTCP, RTSP, UPNP,SMTP,FTP,SIP,DDNS,DNS,ONVIF
Motion Detection	Support
Region Shielding	Support
SD Card Local Storage	Support
WIFI	Support 802.11b/g protocol,2.4GHz(optional)
3G Module	Built-in EVDO/WCDMA/TD-SCDMAModule (optional)
Serial Interface	1 RS- 232 port(For parameter configuration, equipment maintenance, transparent transmission) (Optional built-in,external interface without 232)
Serial Interface	1 RS-485 port(Optional)
Alarm Interface	1 In 1 Out ( Optional)
Management	IE/standalone management software/NVR/decoder/CMS platform server/third-party management platform
Other Parameters
Appearance	Black, White (optional)
Power Supply	DC 12V;POE(optionali)
Working Temperature	-10℃65℃
Working Humidity	Below 85%RH
IP Level	IP 66
Power Consumption	<5W
Optional Accessories	Power:DC 12V/2A
